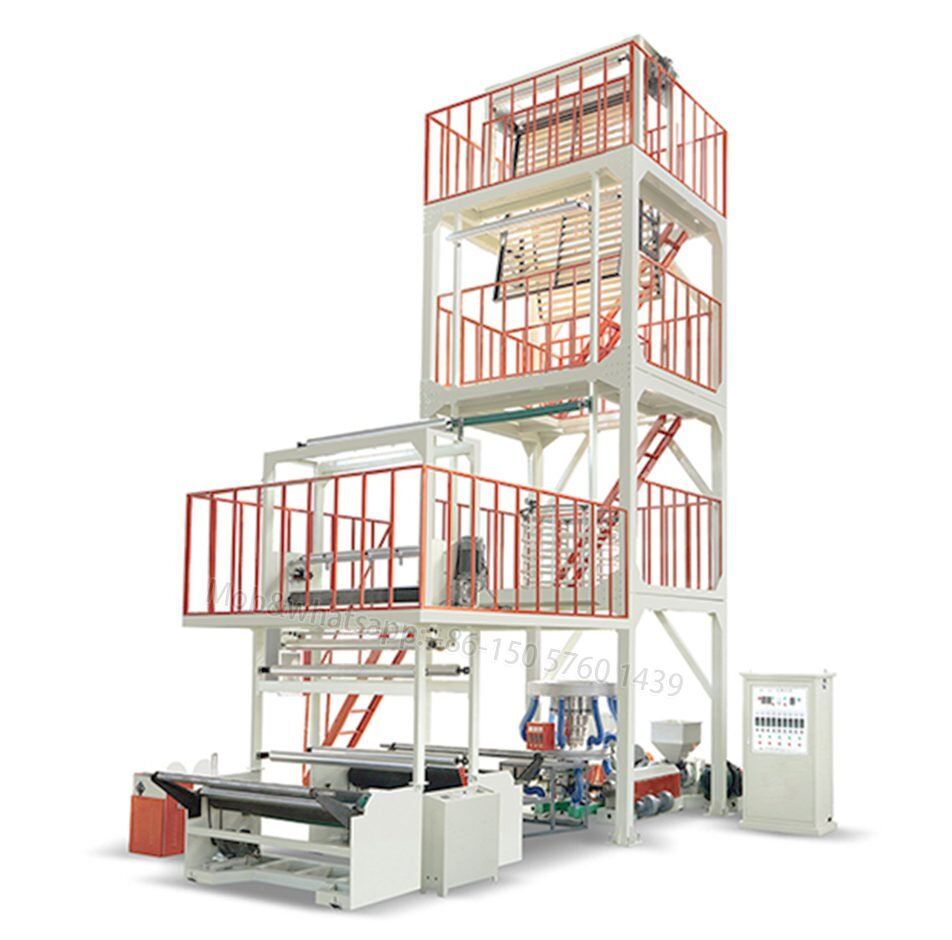

VSJ-R Co-extrusion film blowing machine(rotary die head)

Co-extrusion film blowing machine applicable for the materials as LDPE, HDPE, LLDPE, etc. It is widely used to manufactuer composite film basic material, liquid film, contractive film protective film, cable film, macromolecule adhensive film, multifunctional industrial film products, can better meet operational requirements of high accuracy and high speed color printing, composite and painting products.

Layer quantity

Screw Diameter

Clear

1-layer Co-extrusion film blowing machine(rotary die head)

Model	VSJ45-R	VSJ50-R	VSJ55-R	VSJ60-R	VSJ65-R
Suitable Material	HDPE; LDPE; LLDPE
Film Width(mm)	100-500	300-600	400-800	500-1000mm	600-1200mm
Film Thickness(mm)	0.09-0.10	0.09-0.10	0.09-0.15	0.09-0.15	0.09-0.15
Film Thickness(mm)	0.02-0.15	0.02-0.15	0.03-0.15	0.03-0.15	0.03-0.15
Max.Extrusion Output(kg/h)	35	40	50	55	65
Max.Extrusion Output(kg/h)	45	50	60	70	80
Extruder
Screw Diameter	Φ45	φ50	Φ55	Φ60	Φ65
Screw L/D Length	28:1/30:1	28:1/30:1	28:1/30:1	28:1/30:1	28:1/30:1
Screw Material	Sacm-645/38 crmoala
Cylinder Material	Sacm-645/38 crmoala
Cylinder Cooling	370W*1	370W*2	370W*2	370W*2	370W*2
Driving Motor(kw)	11kw	15kw*	18.5kw	22kw	22kw
Temperature Control	3	3	3	4	4
Average Power-consume	12kw	18kw	20kw	25kw	30kw
Die head
Die Size	Φ60	Φ80	Φ80	Φ100	Φ100
Temperature Control	3	3	3	3	3
Air Ring	1	1	1	1	1
Air Blower	1.5kw	1.5kw	2.2kw	3kw	3kw
Center stabilizer	1	1	1	1	1
Take-up Unit
Roller Width(mm)	600mm	700mm	900mm	1100mm	1300mm
Take-up Speed	500mm	600mm	800mm	1000mm	1200mm
Take-up Motor	800mm	800mm	800mm	800mm	800mm
Drawing speed	10-100m/min	10-100m/min	10-100m/min	10-80m/min	10-80m/min
Lead motor power	0.75kw	1.1kw	1.5kw	1.5kw	1.5kw
Winding Unit
Surface friction	Surface friction type
Coiling power	6N.m	10N.m	10N.m	16N.m	16N.m
Take-up speed	10-100m/min	10-100m/min	10-80m/min	10-80m/min	10-80m/min
Drawing speed	380V,50HZ,3PHASE
Lead motor power	3.8×2.0×4.1	5.0×2.2×4.5	5.5×2.5×5.2	5.8×2.8×6.3	5.8×2.8×6.3

2-layer Co-extrusion film blowing machine(rotary die head)

Model	VSJ50-2R	VSJ55-2R	VSJ60-2R
Suitable Material	HDPE LDPE LLDPE	HDPE LDPE LLDPE	HDPE LDPE LLDPE
Film Width(mm)	600-1000	800-1500	1000-1800
Film Thickness(mm)	0.03-0.20	0.03-0.20	0.03-0.20
Max.Extrusion Output(kg/h)	80	120	150
Extruder
Screw Diameter	φ50 *2	φ55*2	φ60*2
Screw L/D Length	28:1/30:1	28:1/30:1	28:1/30:1
Screw Material	Sacm-645/38 crmoala
Cylinder Material	Sacm-645/38 crmoala
Cylinder Cooling	370W*2	550W*2	550W*2
Driving Motor(kw)	15kw*2	18.5kw*2	22kw*2
Temperature Control	3	3	4
Average Power-consume	55kw	68kw	90kw
Die head
Die Size	Φ220	Φ250	Φ350
Temperature Control	3	3	4
Air Ring	1	1	1
Air Blower	3kw	5.5kw	7.5kw
Center stabilizer	1	1	1
Take-up Unit
Roller Width(mm)	1100mm	1600mm	2000mm
Take-up Speed	1000mm	1500mm	1800mm
Take-up Motor	800mm	800mm	800mm
Drawing speed	10-65m/min	10-65m/min	10-65m/min
Lead motor power	1.5kw	1.5kw	2.2kw
Winding Unit
Surface friction	Surface friction type
Coiling power	10N.m	16N.m	18N.m
Take-up speed	10-65m/min	10-65m/min	10-65m/min
Motor (kw)	A:18.5/B:22/C:10.5	A:22/B:37/C:22	A:37/B:45/C:37
power supply	380V,50HZ,3PHASE
Dimensions (LWH) (m)	9.5×4.5×7.5	10.5×5.0×9	11.5×5.5×10

3-layer Co-extrusion film blowing machine(rotary die head)

Model	VSJ50-3R	VSJ55-3R	VSJ65-3R
Suitable Material	HDPE LDPE LLDPE
Film Width(mm)	800-1200mm	1000-1500mm	1200-2000mm
Film Thickness(mm)	0.028-0.20mm	0.028-0.20mm	0.03-0.20mm
Max.Extrusion Output(kg/h)	120kg/hr	150kg/hr	200kg/hr
Extruder
Screw Diameter	Aφ50 Bφ50 Cφ50	Aφ55 Bφ60 Cφ55	Aφ60 Bφ65 Cφ60
Screw L/D Length	28/1,30/1
Screw Material	Sacm-645/38 Crmoala
Cylinder Material	Sacm-645/38 Crmoala
Cylinder Cooling	370w x 2/3	370wx2/3	550wx3/3
Driving Motor(kw)	A15+B15+C15	A18.5+B22+C18.5	A22+B30+C22
Temperature Control	3×3	3×3	3×3
Average Power-consume	80kw	95kw	120kw
Die head
Die Size	280mm	350mm	500mm
Temperature Control	4
Air Ring	1
Air Blower	3kw	5.5kw	5.5kw
Take-up Unit
Roller Width(mm)	1300	1600	2100
Take-up Speed	5-50m/min	5-50m/min	5-50m/min
Take-up Motor	1.5kw	2.2kw	2.2kw
Winding Unit
Type	Surface Friction Type
Winding Motor	1.5kw	2.2kw	2.2kw
Winding Speed	5-50m/min	5-50m/min	5-50m/min
Outline Diameter(LxWxH)	9.5×4.5×7.5m	10.5×5.0x9m	11.5×5.5x10m

Character:

1. Die head is layer type spiral mandrel, continuous 360 rotation.

2. Screen pack changer design is reliable, safe in operation, and changes the fitter screen easier.

3. Various functional parts may be installed to the lies, such as length counting device, vertical cutting device, cooling water row pipe, film spreading roller, scrap collecting device.
