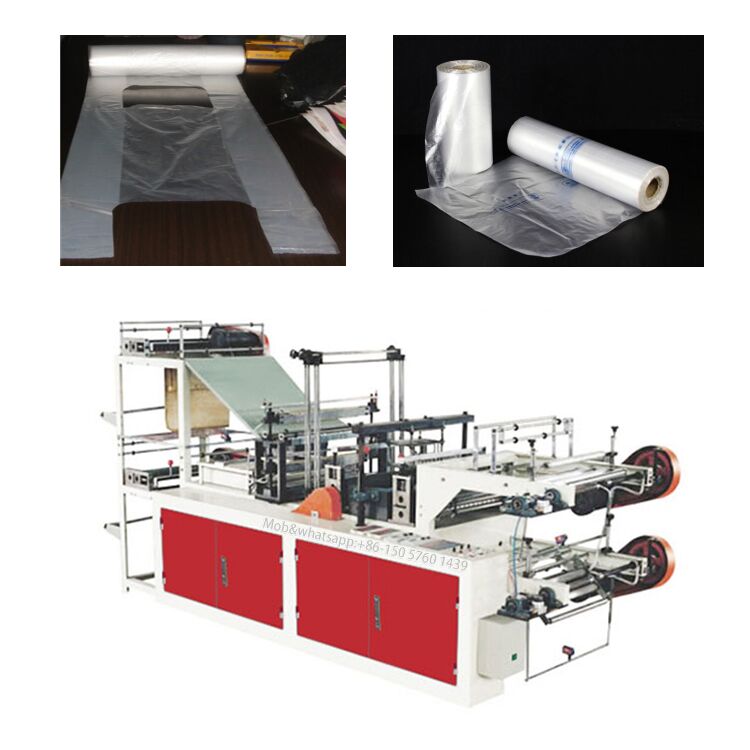

VBM-R Roll Bag Making Machine

Name: VBM-R Roll Bag Making Machine - VIE Machinery
Availability: InStock

This roll bag making machine is producing rolling flat bags, rolling t-shirt bags, and discharging garbage bags. Adopt photoelectric automatic tracking, microcomputer fixed length, high limit stop, architecture, to digital alarm, production bag error, high machine automation procedure, is a white bag, color bag, flat pocket, vest bag garbage bag, etc. Ideal for various plastic soft packaging.

Size

Bag Type

Clear

This roll bag making machine uses microcomputer control, stepper motor dragging (optional servo motor control system), and step-long photoelectric tracking, is an ideal equipment for making high and low-pressure carriers, rolling flat bags, rolling t-shirt bags, and discharging garbage bags.

Parameter:

MODEL	VBM-500/600R	*VBM-500/600R2**
Maximum bag width	450/550mm	450/550mm
Bag length	100-1000mm	100-1000mm
Film thickness	0.01-0.1mm	0.01-0.1mm
Max speed	200pcs/min	120pcs/min*2
Total Power	3kw	3kw
Machine Weight	700kg	900kg
Size	350013001600mm	350013001600mm

Character:

1. The roll bag making machine adopts microcomputer control and material-pulling by stepping motor

2. Arbitrary fixed-length, accurate and stable step photoelectric tracking, stopping automatically when the label is lost

3. Automatic and synchronous sealing, automatic punching

4. Automatic counting and settable counting alarm
