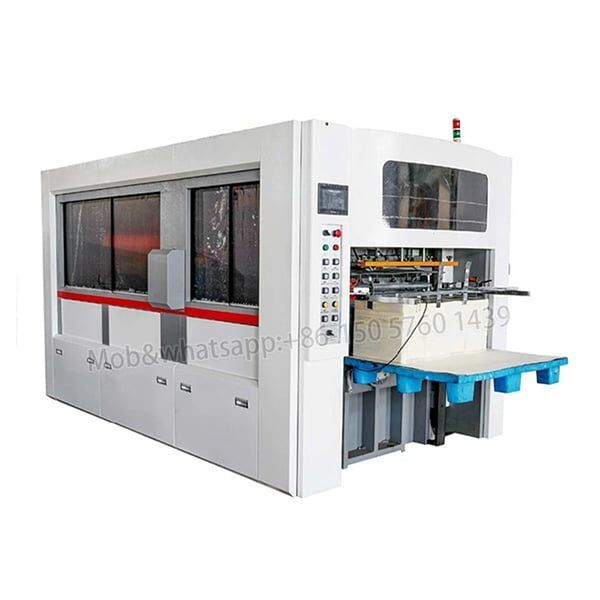

VP-950 high-speed roll paper die cutting machine is used in die-cutting, creasing, embossing, and full-stripping. Suit for various PE coated paper, normal paper, corrugating paper, and plastic material. Can apply to paper cups, paper boxes, medical packages, wine package, food packages, and other environmental protection products.
High-speed electric jumbo roll to sheet roll paper die cutting machine widely used in printing, packing and paper box, paper cup industries. Suitable for die-cutting and creasing various all kinds of white cards, kraft paper, creasing paper, corrugated paper, PVC, aluminum foil paper, paper cup fans, etc. such as a paper cup, paper bowl, cigarette case, medicine paper box, envelope, paper bags, and various paper-plastic products.
Parameter:
| MODEL | PY-950 | PY-1200 |
| Paper conveys width: | 250mm-950mm | 250-1200mm |
| Max roll paper diameter: | 1800mm | 1800mm |
| Cut precision: | ±0.1mm | ±0.1mm |
| Production Capacity: | 150-210pcs/min | 150-210pcs/min |
| Maximum cutting size: | 950*540mm
950*640mm(optional) |
1200*640mm
1200*750mm(optional) |
| Suitable Material : | 120-600g/㎡ white cardboard, PE coated paper, Kraft paper | |
| Maximum Pressure: | 350T | 350T |
| Power : | 14.5w | 14.5w |
| Overall Dimension: | 4200*2100*1850mm | 4200*2300*1850mm |
| Working Air Source | Air pressure:0.6Mpa;
Working air:0.3m³/min |
|
| Total Weight: | 6200KGS(standard)
7800KGS(heavy) |
8400KGS(standard) 10000KGS(heavy) |
1. Machine Host. New design: Worm and Worm wheel together with crankshaft same as the sheet die-cutting machine. The previous design: off-center shaft.
2. Pressure Adjusted. New design: The pressure is automatically adjusted through the motor to control the four feet by HMI. And the pressure can be shown in the HMI. It is very convenient and accurate. The previous design: manually adjusted through the gear wheel or the screw.
3. Positioning block in the movable platform we add one more positioning block in the movable platform. It makes the pressure of the platform more stable, and endurable.
4. Oil circuit. New design: The outside oil circuit adds a filter to clear the oil and a flow switch to monitor the lacking oil. The previous oil circuit is crude and confusing. (the first machinery equipped with alarming oil lacked)
5. The main driving parts in the host are protected by the lubrication system. If the data shows a problem, the machine will stop and alarm. Then you must check the driving parts
6. Air cylinder paper pressure system. In front of the paper feeding platform, we add the air cylinder paper pressure system to ensure the paper convey more smoothly and quickly. We are the first one and the only one machinery that adds this system
7. PLC program: The new design: We make two PLC programs to fit the different quality of printing. Be more functional and accurate
8. Paper feeding balance regulator adds a new type of paper feeding balance regulator to adjust the minor unbalance situation.
9. Paper damper. In order to avoid the paper shaking, we add one more damper to make the paper tractable. The paper leech on the damper when the machine is running. So we can feed paper more stable and faster
10. Roll Paper Loading: The new design: the hydraulic cylinder pushes downward, so it is stronger than the previous design.
11. Paper-blocked alarm system. The new design adds the alarm system to make the machine stop when paper feeding is blocked.
Contact for more details
