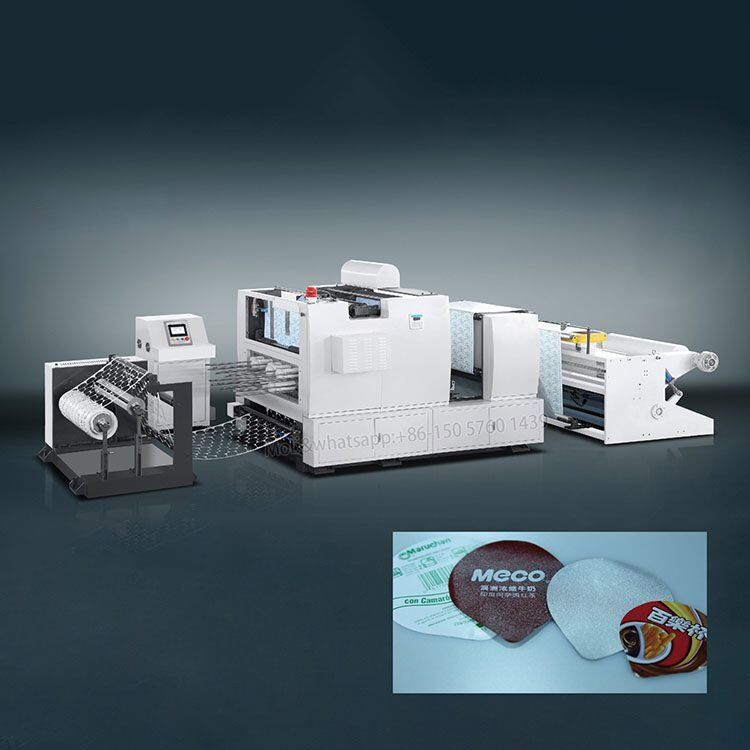

VAP Aluminum Lid Roll Die Punching Machine

120-220 times/min on the VAP-450 and 100-150 times/min on the larger sizes

3 / 3.5 / 4 tonnes by size

Waste is rewound automatically with easy roller change, and finished products are collected automatically and tidily

10 kW total on all sizes, with 0.5 MPa air pressure and 0.2 m³/min consumption; max roller diameter 800 mm

Cutting precision is ±0.20 mm, with servo positioning and photoelectric deviation correction

Parameter: Model VAP- 450 VAP- 550 VAP- 650 Production Capacity 120-220times/min 100-150times/min 100-150times/min Max Cutting Width 450mm 550mm 650mm Cutting Precision ±0.20mm ±0.20mm ±0.20mm Paper Gram Weight Paper Gsm: 60-120g/m2, Thickness: ≥0.06mm (aluminum foil, laminated paper, plain aluminum) Air Pressure Requirement 0.5Mpa 0.5Mpa 0.5Mpa Air Pressure Consumption 0.2m³/min 0.2m³/min 0.2m³/min Weight 3T 3.5T 4T Max Roller Diameter 800mm 800mm 800mm Total Power 10KW 10KW 10KW Character The aluminum lid roll die punching machine is equipped with a Human-computer interface design, easy to operate, and set.

Ice-cream paper corn holders, aluminum foil ice-cream lids, instant-noodle bowl caps, food packaging and paper cup lids

Parameter: Model VAP- 450 VAP- 550 VAP- 650 Production Capacity 120-220times/min 100-150times/min 100-150times/min Max Cutting Width 450mm 550mm 650mm Cutting Precision ±0.20mm ±0.20mm ±0.20mm Paper Gram Weight Paper Gsm: 60-120g/m2, Thickness: ≥0.06mm (aluminum foil, laminated paper, plain aluminum) Air Pressure Requirement 0.5Mpa 0.5Mpa 0.5Mpa Air Pressure Consumption 0.2m³/min 0.2m³/min 0.2m³/min Weight 3T 3.5T 4T Max Roller Diameter 800mm 800mm 800mm Total Power 10KW 10KW 10KW Character The aluminum lid roll die punching machine is equipped with a Human-computer interface design, easy to operate, and set.

It flattens curled paper so punching runs smoother and more accurately

VAP series automatic aluminum lid roll die punching machine based on international advanced technology, it’s widely used in the aluminum lid, paper lid, ice cream paper corn, instant noodles paper aluminum cover, etc..

Paper 60-120 gsm and aluminum foil, laminated paper or plain aluminum with thickness of at least 0.06 mm

VAP series automatic aluminum lid roll die punching machine based on international advanced technology, it’s widely used in the aluminum lid, paper lid, ice cream paper corn, instant noodles paper aluminum cover, etc.. Parameter: Model VAP- 450 VAP- 550 VAP- 650 Production Capacity 120-220times/min 100-150times/min 100-150times/min Max Cutting Width 450mm 550mm 650mm Cutting Precision ±0.20mm ±0.20mm ±0.20mm Paper Gram Weight Paper Gsm: 60-120g/m2, Thickness: ≥0.06mm (aluminum foil, laminated paper, plain aluminum) Air Pressure Requirement 0.5Mpa 0.5Mpa 0.5Mpa Air Pressure Consumption 0.2m³/min 0.2m³/min 0.2m³/min Weight 3T 3.5T 4T Max Roller Diameter 800mm 800mm 800mm Total Power 10KW 10KW 10KW Character The aluminum lid roll die punching machine is equipped with a Human-computer interface design, easy to operate, and set.

VAP-450 / 550 / 650 with max cutting widths of 450, 550 and 650 mm

The VAP comes with a 2-year warranty and worldwide delivery, as stated on the official product page
