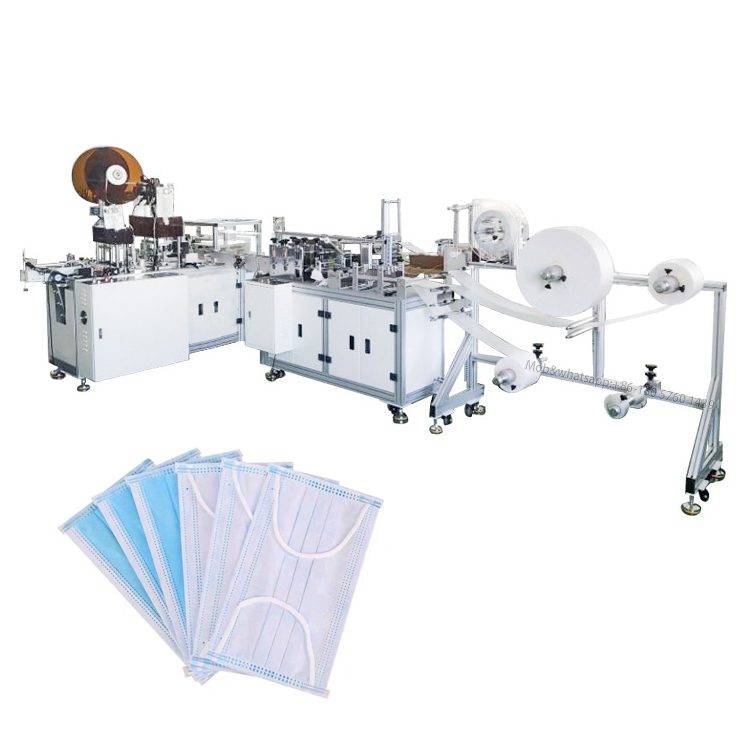

VFM-D 1+1 Inner ear face mask making machine

Main Technology parameter: Speed 130-150pcs/min Total power 10.4kw, 220v single phase 50hz Equipment structure Blank sheet machine with an ear-loop welding unit Finished product dimension 175 ×95mm Applicable material non-woven fabric, synthetic fiber Processing method ultrasonic welding Applicable layer 3 layers/ply Control mode Motion controller Drive mode 9 sets servo motor Air pressure 0.6mpa Machine Size 4600 x2600 x2100mm Machine Weight 700kg Material Supply Name Outer Non-woven (blue) Inner Non-woven (white) Melt-blown fabric Nose clip Earloop Suitable Width 175mm 195mm 175mm 3mm 3-3.2mm Suitable thickness 25gram 25gram 25gram 1mm 1:2.5 Max.diameter of roll 600mm 600mm 600mm 400mm / Inner diameter of roll 60mm 60mm 60mm 200mm Technical characteristics : Three rolls of fabric are automatically aligned and fed, and bilateral symmetrical ultrasonic continuous blanking;
