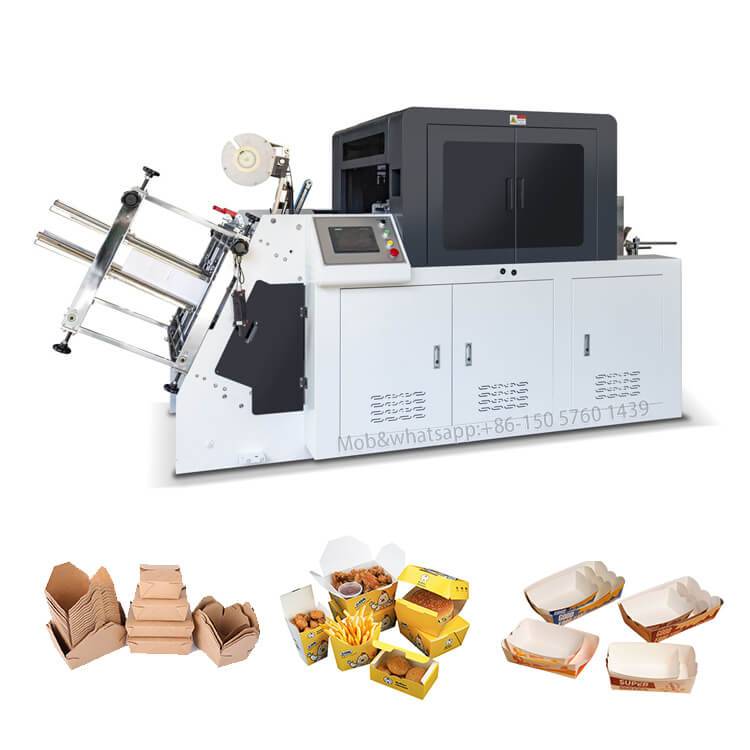

VLB Paper lunch box making machine adopts a micro-computer, PLC, alternating current frequency converter, the vacuum-sucking paper feeding, auto gluing, automatic paper tape counting, and chain drive. All of these main parts and electric control system adopts imported brand to guarantee steady working, precise positioning, smooth running, safety, and reliable operation. It can make more than 10 types of boxes.
Parameter:
| Model | VLB-800 | VLB-1200 |
| Production speed | 60-160pcs/min | 80-300pcs/min |
| Box standard size | 50*50–320*320mm | 50*50–400*400mm |
| Paper Box size | Length : 100-450mm , Angle : 10-40°
Width : 100-550mm , Box Height : 15-200mm |
Length : 100-450mm , Angle : 10-40°
Width : 100-400mm , Box Height : 15-200mm |
| Standard Machine Blank Paper size | Max 320*320mm (bigger size could custom) | Max 400*400mm (bigger size could custom) |
| Paperweight/thickness | 200-600 g/m², card paper，PE coated paper, kraft paper, corrugated paper | |
| Paper | Max 1.5mm | Max 1.5mm |
| Bonding/Gluing device | Water-based adhesive | Water-based adhesive |
| Electrical requirement | 5kw/h | 5kw/h |
| Air requirement | 6kg/cm²*200L/min | 6kg/cm²*200L/min |
| Equipment size | 3480*1320*1500mm | 3580*1800*1600mm |
| Package measurements | 3500*1320*1500mm （L*W*H) | 3600*1800*1600mm （L*W*H) |
| G.W. | 2000kg | 2500kg |
# Adopt Servo motor feed paper, more easy change mold make different size or shape. (new update)
# Compact structure, Strong frame, keep the machine reliable and durable with low noise.
# Hard Plastic-glass cover, Safe and visible for the user.
# Easy exchange molds to make different products, charging, and adjusting time is very short.
# PLC program controls the whole line, available to make complicated boxes.
# Automatic collection, stock, and count.
# Human being designed control button and panel, more easy and safe runs by the user.
| # Electric control box; | # Feeding device; |
| # Transfer System: | # Water glue device ; |
| # Forming(welding) device; | # Collection device ; |
| # One set of mold; |
Contact our Customer Consultant to get more detail quotation
What all applications can it be used for?
The machine is suited for hamburger boxes, four-square boxes, pizza boxes, cake boxes, packing boxes, food boxes (take-away), chip boxes, and other cartons.
What is the lead time for your machine?
Lead time will be around 25-30 days.
Do you provide box paper?
We can help to purchase, basically is cardboard and kraft paper, need to determine the weight, size, and quantity.
how many pcs can be box for 1ton paper?
it depends on the size and paperweight. For example, for 250g kraft paper, this unfolds box size around 32*40cm, 1ton could make around 31,000pcs
How to confirm the mold?
The buyer needs to provide the drawings. If not, the buyer can to provide the box style and size, and we will draw the floor plan for confirmation.
What is the difference between wooden and nylon mold?
1. Pine Wooden: can make around 10,000,000 pcs box, price $100-$120/set, cost around $0.00001-0.000012/pcs
2. Nylon Plastic Mold: No wear and tear in normal use, price $150-$250/set
Is any other mold not possible? like metal.
Metal is not available, cause the weight of the mold needs to be light, to make the punch fast and stable.
Changeover time to replace the mold
It will take 10mins to change the mold and 1-2 hours to adjust the machine
Is water-based adhesive only possible or heat sealing?
Both workable for glue and heat sealing. The Water Glue Sealing system is the standard system in each machine.For PE coated paper, Special Material can ADD EXTRA special seal system
Type of glue to use in the machine
For craft paper: water-based glue
for PE paper: hot melt glue:
What additional machinery is required
Need air compressor, 0.8MPA will be enough.
Will you provide training?
Due to the virus, we are not available to send an engineer for now, but we will provide a guidebook, and operate videos.
Do you have English menus for your controls?
Yes, we have English Manual, and operation video with English explanation
About the transport, how heavy, all machine are together or separate, installation. Does one machine need one container?
The machine is all together, don’t need assemble when you get it.
The package is one wooden box, size 3500*1320*1500mm(7CBM), weight 2000kg, can make LCL ship
What is the warranty on the machine?
Warranty is for one year, parts free, ship cost on buyer
Do I need other machines?
the whole process from paper roll to box is as follows:
1. paper roll printing
2. die cutter
3. box-making machine
there are two options:
if you could get the paper already printed and die-cut, then could put it into box form machine directly
For start business, normally of our client is buying the paper after print direct, then only need buy forming machine
What speed should we expect for each of the different cartons How many cartons per hour?
The highest speed of the machine would be 230pcs/min, but the real average depends on your box type and the operating, three examples:
