The pressed crude oil only goes through simple filtration, and the obtained oil is still crude oil, which must be processed by filtration and refining equipment to meet the quality requirements of oil products. Therefore, we developed and launched small filter equipment, to meet the quality needs of the oil workshop processing, can achieve dephosphorization, degum, decolorization, dehydration, its refined oil color transparent, fresh and light smell, no foam, no lampblack, no color change, no sediment, no peculiar smell of burnt paste.

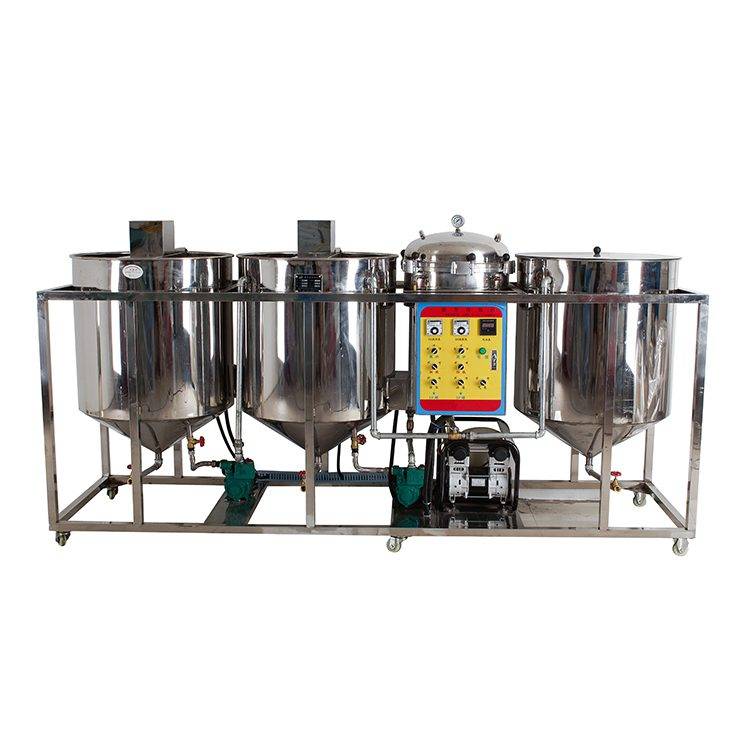

This small oil refinery machine is composed of a Hydration system, fine filter decolorization systems, transmission systems, fluid delivery systems, transmission and lubrication systems, electrical control systems, rack, and other parts.
Parameter:
| Model | VOR-A | VOR-B | VOR-C |
| Capacity | 80kg/3hr | 200kg/4hr | 200kg/3hr |
| The pump power | 1.1kw | 1.1kw | 1.1kw |
| Self-priming pump | 0.37kw | 1.5kw | 2.25kw |
| Heating tube | 6kw | 18kw | 27kw |
| Packing size(mm) | 1700*630*1500 | 3020*900*1590 | 2230*900*1620 |
| Packing weight | 225kg | 460kg | 550kg |
| Agitator tank | 1 | 2 | 3 |
| Power | 380V | 380V | 380V |
Character:
1.Detailed process of our small edible oil refinery machine:
Crude oil-→degumming and deacidification-→decoloring-→fine filtering-→final product oil-→process finished
2.The machine is consists of a hydration deguming&deacidification system, filter de-coloring, transmission system, oil liquid conveying system, transmission and lubrication system, electrical control system, and machine frame.
Contact for more details
