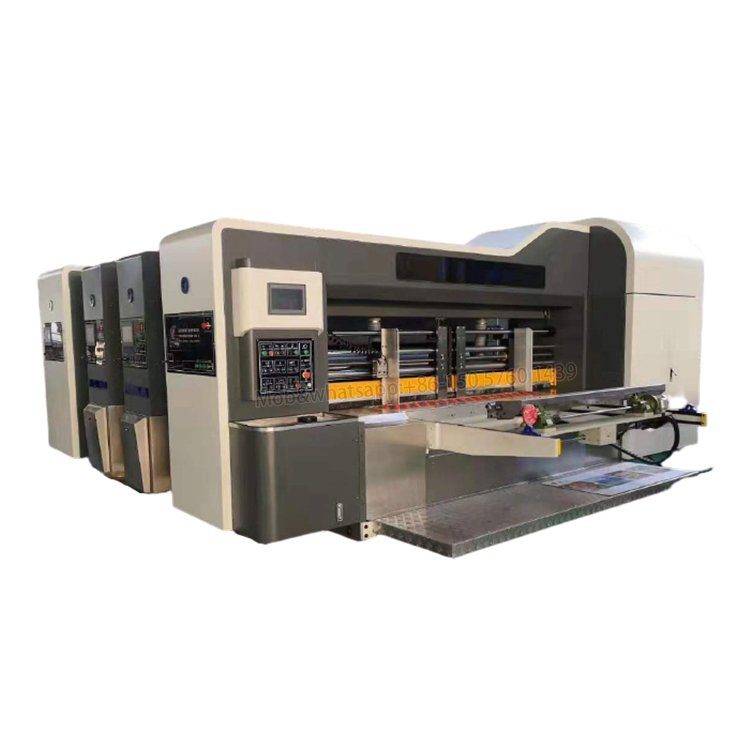

VCP Semi-auto corrugated carton Printing Slotting Machine

Parameter:

Characteristic:

1. This Printing Slotting Machine is composed of paper feeding, printing, die cutting, and other parts. It can complete the printing, pressing, slotting, and chamfering processes of three-layer, five-layer, and seven-layer corrugated cardboard at one time.
2. The transmission system adopts straight gear transmission, which has low noise, enhances the strength of the gear, and improves the transmission stability of the gear.
3.  The Printing Slotting Machine bearing adopts the famous brand bearing produced by Harbin.

4. Each unit is electrically connected and equipped with an alarm bell. When the clutch is engaged, the bell is continuously alerted to ensure the safety of the operator. The clutch motor has a constant torque clutch that can buffer the collision of each unit during the wrong operation.
5. After each unit is closed, each group is pneumatically locked, so that each unit can be locked into the bottom rail.
6. Each unit has an automatic zero return system, and a small amount of cardboard can be sent to the correct size to reduce the waste of cardboard.
7. The phase adjustment of printing and grooving is digital input, and 360-degree phase adjustment can be performed under working or stop state. With automatic zeroing, and automatic versioning functions. The axial adjustment is manual and the adjustable distance is 10mm.
8. The whole machine is beautiful in appearance and soft in color. The modular design allows you to increase or decrease each unit arbitrarily.
9. The motor uses a variable frequency speed control motor. The electrical appliances use brand-name products such as CHNT and Schneider.
10. Pneumatic components: The cylinders are made of Zhejiang famous brand cylinders, the solenoid valves are made of Zhejiang famous brand products, the PU tubes are made by Taiwan “Shan Naisi” brand, and the diaphragm pumps are made of Fujian “Dingli” brand-name products.
11. The rubber roller adopts the high-quality rubber roller produced by Hebei Xintai Rubber Roller Manufacturing Co., Ltd.
12. The anilox roller is made of a high-quality steel anilox roller.

Printing Slotting Machine Standard configuration:

• Paper feeding department:

1. Adopt the advanced chain feeding system, high precision, and fast feeding
2. The phase is controlled by a computer, can be adjusted freely in 360° phase, fast and accurate

• Printing Department:

1. The surface of the printing roller has a marking line in the circumferential direction, a central reference line in the horizontal direction, the printing roller is balanced and the surface is ground and hard chrome-plated.

2. The embossing roller adopts double-disc welding, balance correction, and hard chrome plating on the surface, and the diameter is 120mm. The installation adopts the structure of the sun rocker, and the gears are normally engaged when the clearance is adjusted.

3. The rubber roller is made of high-quality glue, and the rubber roller has a medium-high belt surface, which can compensate for the force deformation and improve the ink transmission effect. The mesh roller is made of high-quality steel, and the surface is plated with hard chrome. The diameter of the 180mm cable is 180-240 lines/inch.

4. A pneumatic lifting net roller prevents the ink from drying out when the printing plate is repeatedly inked and the machine is stopped for a short time.

5. Phase adjustment: The printing roller is equipped with an automatic zero return device, and digital input type, and can perform 360-degree phase adjustment under working or stop state. The axial adjustment is manual and the adjustable distance is 10mm. The gearbox is spray-cycled for lubrication.

6. Ink is applied by a pneumatic diaphragm pump, and an ink storage cup is added to prevent ink splashing and venting, stainless steel ink fountain, automatic circulation cleaning, and automatic ink application.

7. An automatic ink leveling device can achieve a stop-and-stop ink function.

8. The wall panel is made of HT250 and treated with artificial aging to ensure that it will not bend and deform. The processing equipment is a trampoline to ensure processing quality and precision. The machine wall thickness is 40mm and is durable.

• Slotted part:

1. Slotted phase adjustment mechanism, planetary gear structure.
2. The pressure of the pressure roller is manually adjusted, and the dial displays the adjustment data.
3. The gap of the slotted tool holder is manually adjusted, and the dial displays the adjustment data.
4. Slotted pressure line spacing insert plate type four-axis synchronous manual adjustment, carton height four-knife synchronous manual adjustment.
5. The slotted part can be equipped with a punching hole and a buckle device.
