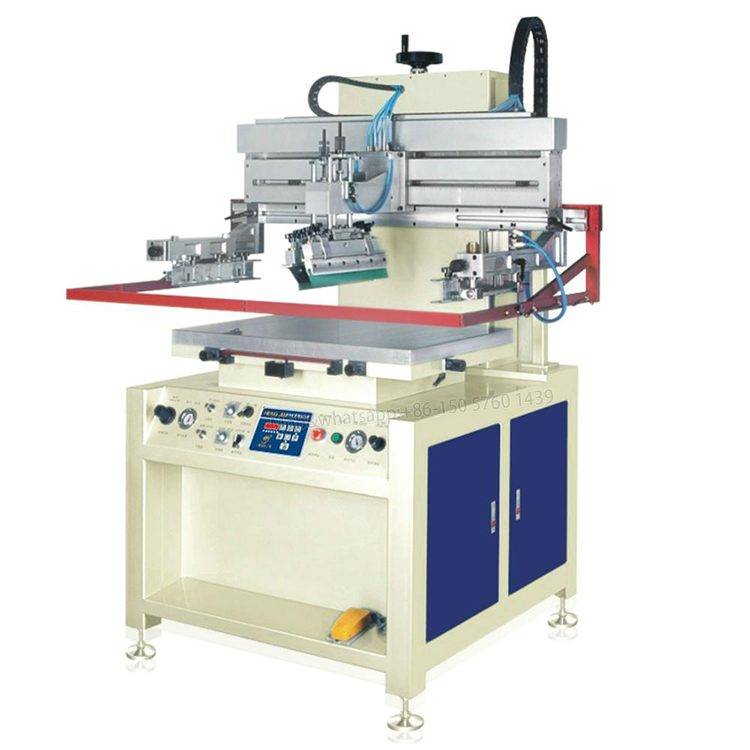

VSP Screen Printing Machine

This printer can comprehensively apply for necessities, toys, electrons, electrical equipment, plastics, leather, metal, glass, light industry and food packages ETC. Every material is available. Like usbs, keychains, lighters etc

Quote Now
SKU: VSP-PRI Categories: ,

Parameter:

 Flat Screen Printing Machine

Item Number:VSP260RVSP-350RVSP-500RVSP-600R
Max printing Diameter:Dia: 80mmDia: 110mmDia: 160mmDia: 190mm
Mini Printing diameter:Dia: 15mmDia: 15mmDia: 20mmDia: 15mm
Max screen Frame size:350x 500 mm400x 600 mm500x 700 mm500x 900 mm
Max printing area:200x 260mm250x 350mm300x 500mm400x600mm
Worktable SQC Size:30x 9mm30x 19mm30x 9mm30x 19mm
SQC holder Length:100 or 200mm150mm150mm150mm
Air consumption:2/ Cycle2.1l/ cycle2.1l/ cycle2.1l/ cycle
Air  Expend/ cycling:2.1L2.1LAir  apply4-6 bar
Printing Speed:1400 pcs/ hour1200 pcs/ hour1000 pcs/ hour1000 pcs/ hour
Screen Frame  stroke to up and down:80mm80mm80mm80mm
Power:500W500W500W500W
Voltage of source:220V 50 HZ220V 50 HZ220V 50 HZ220V 50 HZ
Net Weight160Kg170Kg220Kg170Kg
Dimension(mm):700*750*1620720*760*1680930*1030*16801150*800*750



Cylindrical Screen Printing Machine

Item Number:VSP-260PVSP-350PVSP-500PVSP-600P
Worktable Size:250*350mm300*450mm350*550mm80mm
Max printing Size:200*260 mm250*350 mm300*500 mm400mm*600mm
Max screen Frame size:400*600 mm500*700 mm550*750 mm600*800mm
Max printing Height of products:80mm80mm80mm80mm
Screen Frame Rising/ Down Height160mm160mm160mm160mm
Workable SQC size:30*9mm30*9mm50*9mm50*9mm
SQC holder size:100mm150mm100mm100mm
Power:50W50W50W50W
Single Cycle:2.5S3S3S3S
Air Pressure:0.4-0.6 Mpa0.4-0.6 Mpa0.4-0.6 Mpa0.4-0.6 Mpa
Printing Speed:1400 -1600 pcs/ hr1200 -1400 pcs/ hr1200 pcs/ hr900pcs/hr
Voltage of source:220V 50 HZ220V 50 HZ220V 50 HZ220V 50 HZ
Dimension:910*650*1620mm720*760*1700mm910* 720*1680mm1150*800*1750mm
Net Weight:160Kg220Kg220Kg285KG



Character:

  1. The machine can move from left to right with an automatic unloading device;
  2. Per position is induction with an electric eye, having an accuracy position, and excellent function.
  3. The Squeegee moving from left to right with guide pillar structure, moving smoothly, light,t and hardy to provide the printing quality.
  4. The Squeegee moving from left to right with FESTO ORIGA which suitable for high accuracy printing.
  5. The screen frame raising and down with guide pillar, high accuracy, moving stably.
  6. As your need, can setting printing once, twice, etc.
  7. Stable function, the whole machine is controlled by Microcomputer.
  8. As the customer requested, Set two programs, single cycling, and automatic printing.
  9. With Japan Germany pneumatic components, dynamic smoothy and durable.



Contact for a more detailed quotation

c Expand All C Collapse All

VSP Screen Printing Machine (5)

a

What about the machine size and weight?

Parameter: Flat Screen Printing Machine Item Number: VSP260R VSP-350R VSP-500R VSP-600R Max printing Diameter: Dia: 80mm Dia: 110mm Dia: 160mm Dia: 190mm Mini Printing diameter: Dia: 15mm Dia: 15mm Dia: 20mm Dia: 15mm Max screen Frame size: 350x 500 mm 400x 600 mm 500x 700 mm 500x 900 mm Max printing area: 200x 260mm 250x 350mm 300x 500mm 400x600mm Worktable SQC Size: 30x 9mm 30x 19mm 30x 9mm 30x 19mm SQC holder Length: 100 or 200mm 150mm 150mm 150mm Air consumption: 2/ Cycle 2.1l/ cycle 2.1l/ cycle 2.1l/ cycle Air Expend/ cycling: 2.1L 2.1L Air apply 4-6 bar Printing Speed: 1400 pcs/ hour 1200 pcs/ hour 1000 pcs/ hour 1000 pcs/ hour Screen Frame stroke to up and down: 80mm 80mm 80mm 80mm Power: 500W 500W 500W 500W Voltage of source: 220V 50 HZ 220V 50 HZ 220V 50 HZ 220V 50 HZ Net Weight 160Kg 170Kg 220Kg 170Kg Dimension(mm): 700*750*1620 720*760*1680 930*1030*1680 1150*800*750 Cylindrical Screen Printing Machine Item Number: VSP-260P VSP-350P VSP-500P VSP-600P Worktable Size: 250*350mm 300*450mm 350*550mm 80mm Max printing Size: 200*260 mm 250*350 mm 300*500 mm 400mm*600mm Max screen Frame size: 400*600 mm 500*700 mm 550*750 mm 600*800mm Max printing Height of products: 80mm 80mm 80mm 80mm Screen Frame Rising/ Down Height 160mm 160mm 160mm 160mm Workable SQC size: 30*9mm 30*9mm 50*9mm 50*9mm SQC holder size: 100mm 150mm 100mm 100mm Power: 50W 50W 50W 50W Single Cycle: 2.5S 3S 3S 3S Air Pressure: 0.4-0.6 Mpa 0.4-0.6 Mpa 0.4-0.6 Mpa 0.4-0.6 Mpa Printing Speed: 1400 -1600 pcs/ hr 1200 -1400 pcs/ hr 1200 pcs/ hr 900pcs/hr Voltage of source: 220V 50 HZ 220V 50 HZ 220V 50 HZ 220V 50 HZ Dimension: 910*650*1620mm 720*760*1700mm 910* 720*1680mm 1150*800*1750mm Net Weight: 160Kg 220Kg 220Kg 285KG

a

What are the power requirements of the VSP Screen Printing Machine?

Parameter: Flat Screen Printing Machine Item Number: VSP260R VSP-350R VSP-500R VSP-600R Max printing Diameter: Dia: 80mm Dia: 110mm Dia: 160mm Dia: 190mm Mini Printing diameter: Dia: 15mm Dia: 15mm Dia: 20mm Dia: 15mm Max screen Frame size: 350x 500 mm 400x 600 mm 500x 700 mm 500x 900 mm Max printing area: 200x 260mm 250x 350mm 300x 500mm 400x600mm Worktable SQC Size: 30x 9mm 30x 19mm 30x 9mm 30x 19mm SQC holder Length: 100 or 200mm 150mm 150mm 150mm Air consumption: 2/ Cycle 2.1l/ cycle 2.1l/ cycle 2.1l/ cycle Air Expend/ cycling: 2.1L 2.1L Air apply 4-6 bar Printing Speed: 1400 pcs/ hour 1200 pcs/ hour 1000 pcs/ hour 1000 pcs/ hour Screen Frame stroke to up and down: 80mm 80mm 80mm 80mm Power: 500W 500W 500W 500W Voltage of source: 220V 50 HZ 220V 50 HZ 220V 50 HZ 220V 50 HZ Net Weight 160Kg 170Kg 220Kg 170Kg Dimension(mm): 700*750*1620 720*760*1680 930*1030*1680 1150*800*750 Cylindrical Screen Printing Machine Item Number: VSP-260P VSP-350P VSP-500P VSP-600P Worktable Size: 250*350mm 300*450mm 350*550mm 80mm Max printing Size: 200*260 mm 250*350 mm 300*500 mm 400mm*600mm Max screen Frame size: 400*600 mm 500*700 mm 550*750 mm 600*800mm Max printing Height of products: 80mm 80mm 80mm 80mm Screen Frame Rising/ Down Height 160mm 160mm 160mm 160mm Workable SQC size: 30*9mm 30*9mm 50*9mm 50*9mm SQC holder size: 100mm 150mm 100mm 100mm Power: 50W 50W 50W 50W Single Cycle: 2.5S 3S 3S 3S Air Pressure: 0.4-0.6 Mpa 0.4-0.6 Mpa 0.4-0.6 Mpa 0.4-0.6 Mpa Printing Speed: 1400 -1600 pcs/ hr 1200 -1400 pcs/ hr 1200 pcs/ hr 900pcs/hr Voltage of source: 220V 50 HZ 220V 50 HZ 220V 50 HZ 220V 50 HZ Dimension: 910*650*1620mm 720*760*1700mm 910* 720*1680mm 1150*800*1750mm Net Weight: 160Kg 220Kg 220Kg 285KG

a

What is the capacity/speed of the VSP Screen Printing Machine?

Parameter: Flat Screen Printing Machine Item Number: VSP260R VSP-350R VSP-500R VSP-600R Max printing Diameter: Dia: 80mm Dia: 110mm Dia: 160mm Dia: 190mm Mini Printing diameter: Dia: 15mm Dia: 15mm Dia: 20mm Dia: 15mm Max screen Frame size: 350x 500 mm 400x 600 mm 500x 700 mm 500x 900 mm Max printing area: 200x 260mm 250x 350mm 300x 500mm 400x600mm Worktable SQC Size: 30x 9mm 30x 19mm 30x 9mm 30x 19mm SQC holder Length: 100 or 200mm 150mm 150mm 150mm Air consumption: 2/ Cycle 2.1l/ cycle 2.1l/ cycle 2.1l/ cycle Air Expend/ cycling: 2.1L 2.1L Air apply 4-6 bar Printing Speed: 1400 pcs/ hour 1200 pcs/ hour 1000 pcs/ hour 1000 pcs/ hour Screen Frame stroke to up and down: 80mm 80mm 80mm 80mm Power: 500W 500W 500W 500W Voltage of source: 220V 50 HZ 220V 50 HZ 220V 50 HZ 220V 50 HZ Net Weight 160Kg 170Kg 220Kg 170Kg Dimension(mm): 700*750*1620 720*760*1680 930*1030*1680 1150*800*750 Cylindrical Screen Printing Machine Item Number: VSP-260P VSP-350P VSP-500P VSP-600P Worktable Size: 250*350mm 300*450mm 350*550mm 80mm Max printing Size: 200*260 mm 250*350 mm 300*500 mm 400mm*600mm Max screen Frame size: 400*600 mm 500*700 mm 550*750 mm 600*800mm Max printing Height of products: 80mm 80mm 80mm 80mm Screen Frame Rising/ Down Height 160mm 160mm 160mm 160mm Workable SQC size: 30*9mm 30*9mm 50*9mm 50*9mm SQC holder size: 100mm 150mm 100mm 100mm Power: 50W 50W 50W 50W Single Cycle: 2.5S 3S 3S 3S Air Pressure: 0.4-0.6 Mpa 0.4-0.6 Mpa 0.4-0.6 Mpa 0.4-0.6 Mpa Printing Speed: 1400 -1600 pcs/ hr 1200 -1400 pcs/ hr 1200 pcs/ hr 900pcs/hr Voltage of source: 220V 50 HZ 220V 50 HZ 220V 50 HZ 220V 50 HZ Dimension: 910*650*1620mm 720*760*1700mm 910* 720*1680mm 1150*800*1750mm Net Weight: 160Kg 220Kg 220Kg 285KG

a

What is the VSP Screen Printing Machine used for?

The Squeegee moving from left to right with FESTO ORIGA which suitable for high accuracy printing.

a

Which models are available for the VSP Screen Printing Machine?

Available models: VSP260R, VSP-350R, VSP-500R, VSP-600R, VSP-260P, VSP-350P.
