VGM surgical gowns making machine

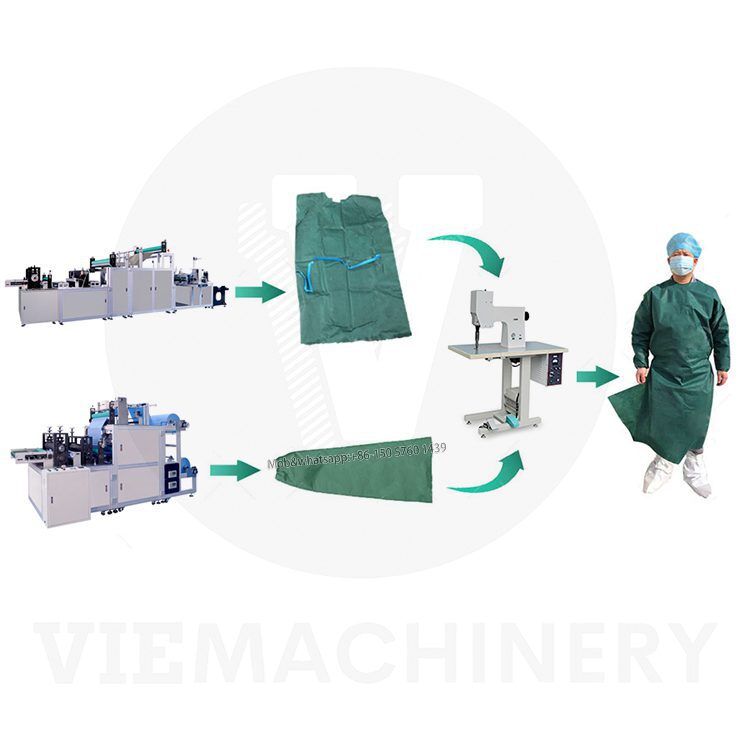

The whole production line included three type of machines:

1.VGB Surgical gown making machine

2.VGS Sleeve making machine

3.VSM Ultrasonic Manual sewing machine

Weight 850 kg
Dimensions 3900 × 820 × 1550 cm
Capacity

20-30pcs/min

Power

15-45kw

Detail about VGM surgical gowns making machine

1.VGB Surgical Gowns Body making machine

MODEL VGB
Speed 15-30pcs/min
voltage 380v 3phase 50hz
power 10kw
Net weight 2100kg
Machine dimension 8000*3280*1760mm
Max unwinding diameter 500-1000mm
Max unwinding width 1450-1600mm
Non-woven thickness 40-60gsm

Feature:

1.high production and excellent performance.

2.From material feeding to belt welding, neckline cutting, folding, cuff cutting, shoulder welding and cutting.

3.PLC .touch screen control .easy operation

4.Automatic tension control,aluminium ally frame, stable and durable .



2.VGS Sleeve making machine

MODEL VGS
Speed 20-30 Pairs/min
voltage 380v 3phase 50hz
power 5kw
Net weight 1200kg
Machine dimension 5000*2000*1800mm

Feature:

1.high production and excellent performance.

2.Products from raw materials to products sent to the layer count full automation..

3.PLC .touch screen control .easy operation

4.Automatic tension control,aluminium ally frame, stable and durable .



3.VSM Ultrasonic Manual sewing machine

MODEL VSM
Speed 1-2 pcs/min
voltage 220v 1phase 50hz
power 2kw
Out put frequency 20KHZ
Net weight 100kg
Machine dimension 800*600*1200mm
Note: need work with air compressor



Materials Consumption

Item PP Non-woven Non woven ribbon Elastic
Unwind Diameter 500-1000mm 500-1000mm
Unwind width 76.2mm 76.2mm
Core Diameter 1450-1600mm 36mm 4mm
Material thickness 40-60gsm 40-60gsm
