It consists of a sealing and cutting machine and a heat shrink machine. It uses shrink film to wrap the product or package. After sealing and cutting, it is heated to shrink the packaging material and wrap the product or package tightly, fully displaying the displayability of the item to increase the beauty and value.
Packaging The finished items can be sealed, moisture-proof, and pollution-proof, and protect the items from external impact. It has a certain buffering property and can also reduce the possibility of the product being dismantled;
The shrink film produces a certain amount of tension when it shrinks, so it can be A group of items to be packaged is wrapped tightly and acts as a rope strap. It is suitable for the collection and pallet packaging of multiple groups of items. It is widely used in mass production packaging flow operations and has high work efficiency.
| Side sealing machine | |
| Model | WFQ450 |
| Film width | ≤550m |
| Packaging width | ≤350m |
| Product height | ≤180mm |
| Packing speed | 1-10m/min |
| Air supply | 6.0-8.0 kgf/cm² |
| Power | 1.35kw 220V 50Hz |
| Table height | 790mm |
| Machine size | 1550*880*1420mm |
| Machine weight | 300kg |
| Shrink packaging machine | |
| Model | LFQ4522 |
| Conveyor belt bearing | 10kg |
| Speed | 1-10m/min |
| Power | 9kw 380V 50Hz |
| Table height | 790mm |
| Tunnel dryer size | 1200*450*220mm |
| Machine size | 1650*700*1330mm |
| Machine weight | 130kg |
Contact for a more detailed quotation
Sealer machine size is 1550*880*1420mm, weight about 300kg, table height 790mm.
The sealer runs on 1.35kw, 220V 50Hz, with air supply 6.0-8.0 kgf/cm2. Tunnel parameters are listed on the specification sheet.

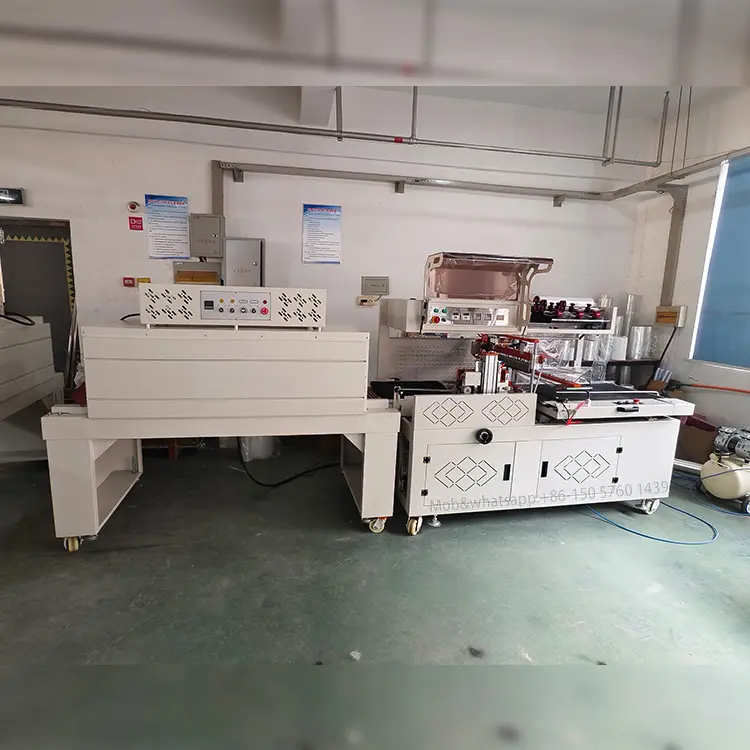

One WFQ450 side-sealing shrink sealer plus one LFQ4522 shrink tunnel working as a single line (some quotations write the tunnel as RS4522).
Film width up to 550mm, packaging width up to 350mm and product height up to 180mm, with conveyor speed adjustable 1-10 m/min.
The finished package is sealed, moisture-proof and pollution-proof, protects items from external impact, gives buffering property and reduces the possibility of the product being dismantled.
