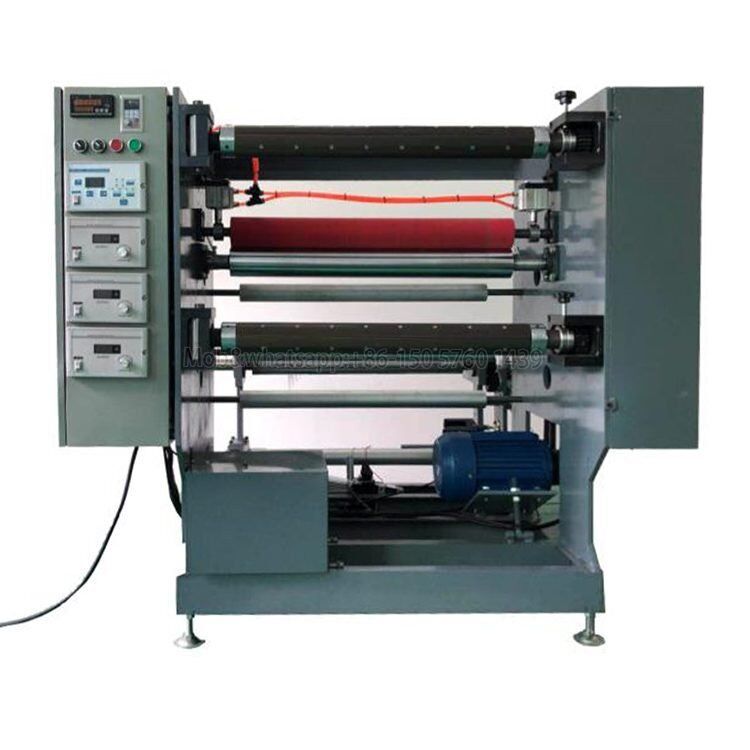

Ribbon Slitting Machine is suitable for metallic ribbon, iridescent ribbon, holographic ribbon, glitter ribbon, metal-coated PP ribbon, PET material slitting. It is widely used to produce 1.2cm wide to 50cm wide ribbon roll. It works best for preparing proper size ribbon and cooperate very well with Star Bow Machine, Curly Bow Machine, Ribbon Egg Machine, and so on.
Yes. Photoelectric edge guiding with a 120 mm correction range and ±0.3 mm accuracy.
Two rewinding shafts. Rewind diameter and shaft configuration are confirmed with the quotation because two shaft sizes are used in production.
Parameter: Model VRS-1000 Size 1500*1300*1200mm Voltage 220V Power 0.75KW Production Width 1.2 – 50 cm Production Length 100 – 1000 m Production Capacity 7500 m/day Rated Current 3.3A Hertz 50Hz RPM 1420 r/min Rewinding part: 52 Head High-speed production
Parameter: Model VRS-1000 Size 1500*1300*1200mm Voltage 220V Power 0.75KW Production Width 1.2 – 50 cm Production Length 100 – 1000 m Production Capacity 7500 m/day Rated Current 3.3A Hertz 50Hz RPM 1420 r/min Rewinding part: 52 Head High-speed production
Parameter: Model VRS-1000 Size 1500*1300*1200mm Voltage 220V Power 0.75KW Production Width 1.2 – 50 cm Production Length 100 – 1000 m Production Capacity 7500 m/day Rated Current 3.3A Hertz 50Hz RPM 1420 r/min Rewinding part: 52 Head High-speed production
Paper, PVC, PET and PP ribbon, film and paper rolls. Typical paper weight is 40-200 gsm and film thickness is 4-20 microns.
The VRS-1000 uses a 3 kW motor at 380 V and occupies 1,850 x 1,400 x 1,300 mm. Confirm the voltage for your country when ordering.
The VRS-1000 slits from 10 mm up to 1,000 mm, with a minimum slit width of 10 mm.
Up to 160 m/min, with a slit tolerance of about ±0.3 mm and photoelectric edge guiding.
